Komersial Multicopter Drone 20kg Loading 4 Rotor 12S Sistem Daya
Tempat asal:
Cina
Nama merek:
myuav
Sertifikasi:
MD-20
Nomor model:
MD-20
Kuantitas min Order:
1
Kemasan rincian:
Kasus
Waktu pengiriman:
7 hari kerja
Syarat-syarat pembayaran:
T/T
Kirim Sekarang
Dapatkan Kutipan
Specifications
Highlight Features
FPV Multicopter Drone
,Multicopter Drone 20kg
,FPV Multicopter
Jenis pesawat:
Sayap empat kali lipat
Bahan rangka:
Nylon Industri + Karbon
Penyimpanan lengan:
Lipat cincin
Jarak sumbu roda kendaraan:
1380mm
ground clearance:
628mm
Melempar:
36120
Berat bersih:
20kg
Berat Lepas Landas Maksimum:
40KG
Kisaran kosong (17,5kg):
36 mnt
Beban 20kg:
12 mnt
Baterai:
12S 25000mAh
Resistensi angin maksimum:
13m/s
Protokol pemetaan:
Gambar 1
Jarak komunikasi:
7km (tanpa masker)
Titik transfer grafik:
2,4 GHz
Suhu operasi:
-20—60℃
Sistem penentuan posisi:
GPS/RTK
Keakuratan posisi (GPS):
≤ 0,5m
Akurasi posisi (RTK):
≤ 0,3m
Kecepatan penerbangan maksimum:
25 m/dtk
Kecepatan maksimum merangkak:
10 m/dtk
Kecepatan penurunan maksimum:
6m/dtk
Kecepatan sudut maksimum:
100°/dtk
Sudut penerbangan maksimum:
35°
Ketinggian penerbangan maksimum:
5000m
FPV:
Standar
GPS:
Standar
Remote control dengan layar:
Standar
RTK:
Opsional
Nacelle:
Opsional
Deskripsi Produk

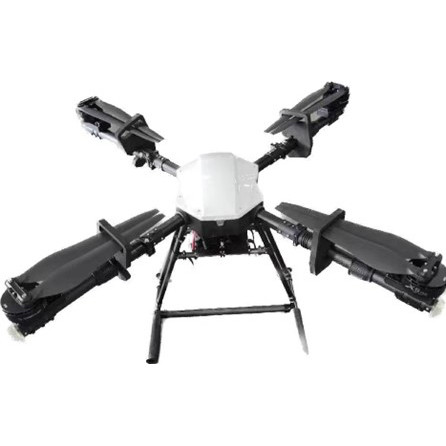

Multicopter Commercial Drone 20kg Loading 4 Rotor 12S
Fitur:
- Beban multi-jalur dapat didukung secara bersamaan
- Hingga 20kg
- Lensa FPV depan
- Fitur sistem daya 14S
- Modular, sasis satu bagian
Parameter spesifikasi:
| Jenis item | Parameter |
| Jenis pesawat terbang | Sayap empat |
| Bahan rangka | Nylon Industri + Karbon |
| Penyimpanan lengan | Lipat cincin |
| Jarak sumbu kendaraan | 1380mm |
| Kebersihan tanah | 628mm |
| Pitch | 36120 |
| Berat bersih | 20kg |
| Berat maksimum saat lepas landas | 40kg |
| Jarak kosong (17,5 kg) | 36 menit. |
| Beban 20kg | 12 menit |
| Baterai | 12S 25000mAh |
| Resistensi angin maksimum | 13m/s. |
| Protokol pemetaan | Gambar 1 |
| Jarak komunikasi | 7km (tanpa topeng) |
| Titik transfer grafik | 2.4 GHz |
| Suhu operasi | -20°60°C |
| Sistem penentuan posisi | GPS/RTK |
| Keakuratan posisi (GPS) | ≤ 0,5m |
| Keakuratan posisi (RTK) | ≤ 0,3m |
| Kecepatan penerbangan maksimum | 25m/s. |
| Kecepatan maksimum merangkak | 10m/s. |
| Kecepatan penurunan maksimum | 6m/s. |
| Kecepatan sudut maksimum | 100°/s. |
| Sudut penerbangan maksimum | 35° |
| Ketinggian penerbangan maksimum | 5000m |
| FPV | Standar |
| GPS | Standar |
| Remote control dengan layar | Standar |
| RTK | Opsional |
| Kapsul | Opsional |
| Radar menghindari | Opsional |
| Berteriaklah | Opsional |
| Lampu pencari | Opsional |
| Kotak drop | Opsional |
| Penembak | Opsional |
| Modus pemasangan | Penghentian cepat standar |
| Kapasitas baterai | 25000mAh |
| Waktu pengisian | 80 menit |
| Berat baterai bersih | 5kg |
| Karoseri tahan air | IP65 |
